Ezurio (Laird) Sentrius

Registration and Installation

If you have not done so already you will need to register your gateway through your Developer or RAN Provider account using the steps below.

Note

The serial number for this gateway is "0x" followed by the Ethernet MAC ID without any separators. The Ethernet MAC ID can be found on the bottom of the Base Station.

Senet Packet Forwarder

Firmware Versions Ezurio (Laird) Linux gatwick-laird-93.8.5.21 and newer

During registration on the Senet Portal select the Gateway Type "Laird Sentrius" and follow the steps to complete the registration process.
On the Ezurio (Laird) web interface select the LoRa Tab
Select "Presets" from the column on the left
From the "Select Preset" drop down select "Senet DEV - US" and click Apply
Close browser

Once registration and Base Station software installation are complete the Base Station will be displayed in the Senet Portal Dashboard with the current registration status (this may require a refresh of the browser).

Semtech Packet Forwarder

Firmware Versions older than Ezurio (Laird) Linux gatwick-laird-93.7.3.1

During registration on the Senet Portal select the Gateway Type "Semtech Packet Forwarder" and follow the steps to complete the registration process.

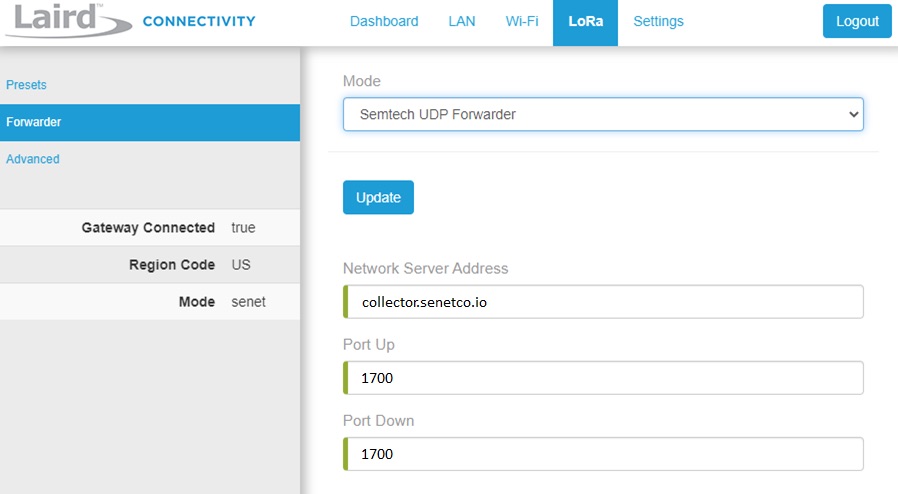

On the Ezurio (Laird) web interface select the LoRa Tab
Select "Forwarder" from the column on the left
From the "Mode" drop down select "Semtech Forwarder"
In the Network Server Address type "ns-gw.senetco.io"
Port Up Type "1700"
Port Down Type "1700"
Click update
Close browser
